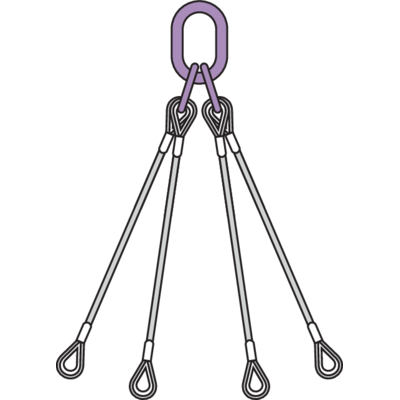

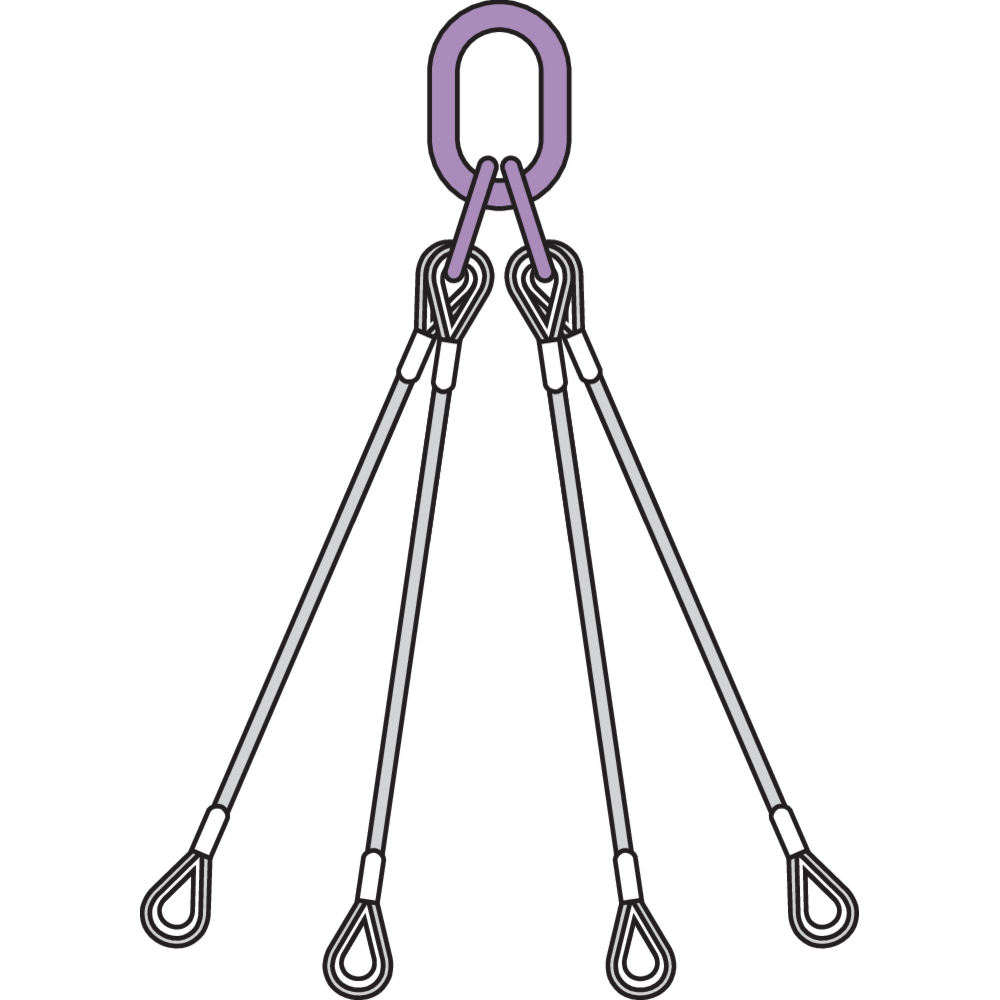

Standard steel wire rope construction: 6x36WS IWRC, 1960N/mm2

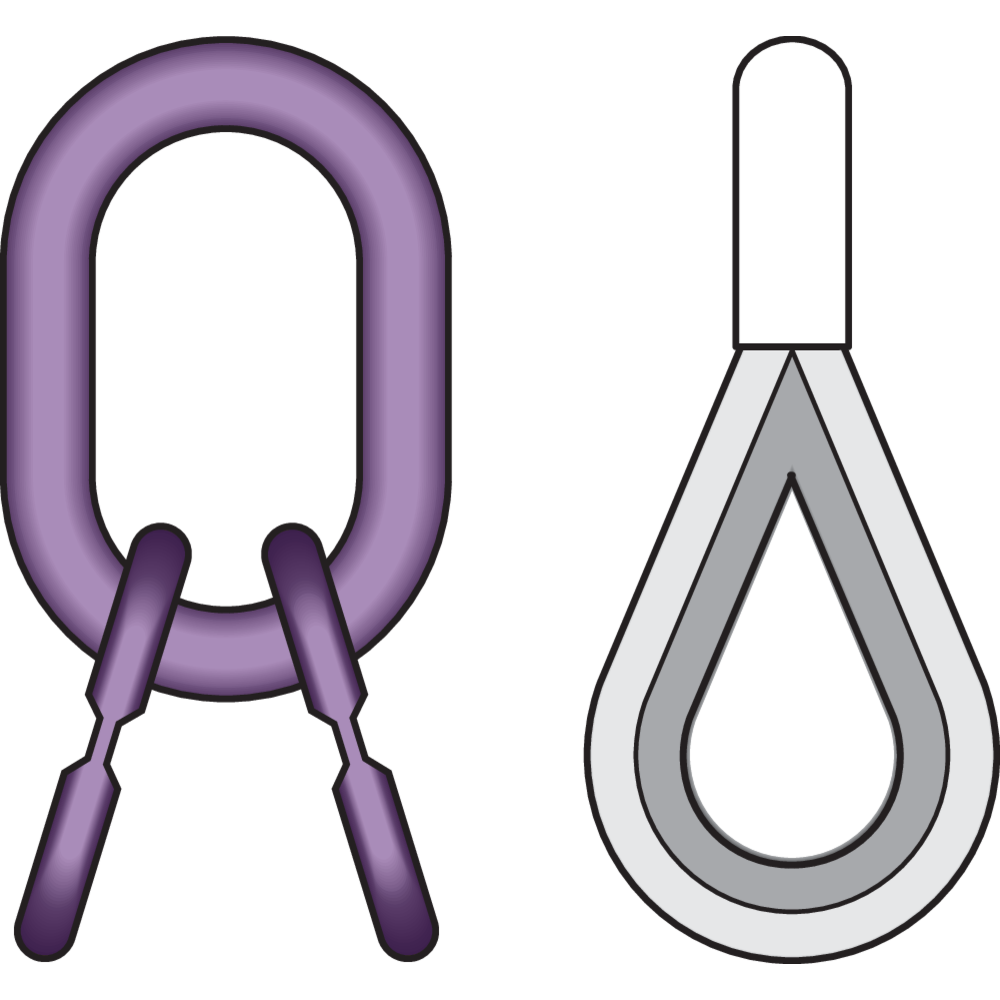

Design: Master link in one end and thimble in other ends, aluminum ferrule secured (mechanical spliced).
Load table at Technical Data -> Show table
Please specify the needed (working) length with your request.
Other rope construction and/or end-terminations such as top rings, shackles, hooks, etc.. possible on request. In that case, please contact us to discuss the possible options or specify it with your request.
Stållinestroppar 6X36 IWRC 1960N/mm2
enligt EN 13414-1
|
Säkerhetsfaktor 4:1 |
⌀ | Enkel | 2-partig & U-form i vinkel* | 3−4-partig* | Ändlös | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
| Rakt | Snarat | U-form | 0°−45° | 45°−60° | 0°−45° | 45°−60° | Rakt | Snarat | U-form | ||
| mm | Max last (WLL) i ton | ||||||||||
| 3 | 0,11 | 0,09 | 0,22 | 1,15 | 1,11 | 0,23 | 0,16 | 0,22 | 0,17 | 0,44 | |
| 4 | 0,19 | 0,15 | 0,38 | 0,27 | 0,19 | 0,40 | 0,29 | 0,38 | 0,30 | 0,76 | |
| 5 | 0,30 | 0,24 | 0,60 | 0,42 | 0,30 | 0,63 | 0,45 | 0,60 | 0,48 | 1,20 | |
| 6 | 0,43 | 0,34 | 0,86 | 0,60 | 0,43 | 0,90 | 0,65 | 0,86 | 0,69 | 1,72 | |
| 7 | 0,60 | 0,50 | 1,20 | 0,80 | 0,60 | 1,26 | 0,90 | 1,20 | 0,96 | 2,40 | |
| 8 | 0,80 | 0,65 | 1,60 | 1,15 | 0,80 | 1,70 | 1,20 | 1,60 | 1,30 | 3,20 | |
| 9 | 1,05 | 0,80 | 2,10 | 1,45 | 1,05 | 2,20 | 1,80 | 2,10 | 1,70 | 4,20 | |
| 10 | 1,30 | 1,00 | 2,60 | 1,80 | 1,30 | 2,70 | 1,90 | 2,60 | 2,00 | 5,20 | |
| 11 | 1,50 | 1,20 | 3,00 | 2,20 | 1,50 | 3,30 | 2,30 | 3,00 | 2,50 | 6,00 | |
| 12 | 1,80 | 1,40 | 3,60 | 2,60 | 1,80 | 3,90 | 2,80 | 3,60 | 3,00 | 7,20 | |
| 13 | 2,20 | 1,80 | 4,40 | 3,00 | 2,20 | 4,50 | 3,20 | 4,40 | 3,50 | 8,80 | |
| 14 | 2,50 | 2,00 | 5,00 | 3,50 | 2,50 | 5,30 | 3,80 | 5,00 | 4,00 | 10,00 | |
| 16 | 3,30 | 2,60 | 6,60 | 4,60 | 3,30 | 6,90 | 4,90 | 6,60 | 5,20 | 13,20 | |
| 18 | 4,10 | 3,30 | 8,20 | 5,80 | 4,10 | 8,70 | 6,20 | 8,20 | 6,60 | 16,40 | |
| 20 | 5,10 | 4,10 | 10,20 | 7,20 | 5,10 | 10,70 | 7,70 | 10,20 | 8,20 | 20,40 | |
| 22 | 6,20 | 5,00 | 12,40 | 8,70 | 6,20 | 13,00 | 9,30 | 12,40 | 10,00 | 24,80 | |
| 24 | 7,40 | 5,90 | 14,80 | 10,30 | 7,40 | 15,50 | 11,10 | 14,80 | 11,80 | 29,60 | |
| 26 | 8,70 | 7,00 | 17,40 | 12,10 | 8,70 | 18,20 | 13,00 | 17,40 | 13,80 | 34,80 | |
| 28 | 10,00 | 8,00 | 20,00 | 14,00 | 10,00 | 21,00 | 15,00 | 20,00 | 16,00 | 40,00 | |
| 32 | 13,00 | 10,40 | 26,00 | 18,40 | 13,00 | 27,50 | 19,70 | 26,00 | 21,00 | 52,00 | |
| 36 | 16,60 | 13,30 | 33,00 | 23,00 | 16,60 | 35,00 | 25,00 | 33,00 | 26,50 | 66,00 | |
| 40 | 20,50 | 16,40 | 41,00 | 29,00 | 20,50 | 43,00 | 31,00 | 41,00 | 33,00 | 82,00 | |
| 44 | 25,00 | 20,00 | 50,00 | 35,00 | 25,00 | 52,00 | 37,00 | 50,00 | 40,00 | 100,00 | |
| 48 | 29,50 | 23,60 | 59,00 | 41,00 | 29,50 | 62,00 | 44,00 | 59,00 | 47,00 | 118,00 | |
| 52 | 35,00 | 28,00 | 70,00 | 48,00 | 35,00 | 73,00 | 52,00 | 70,00 | 55,00 | 140,00 | |
| Faktor (KL) | 1 | 0,8 | 2 | 1,4 | 1 | 2,1 | 1,5 | 2 | 1,6 | 4 | |
| * När flerpartiga redskap används i snarat lyft - reducera värdet med 20%. | |||||||||||
