Standard steel wire rope construction: 6x36WS IWRC, 1960N/mm2*
(*ø 3mm - ø 7mm rope constrcution: 6x19M WSC 1960 N/mm2)

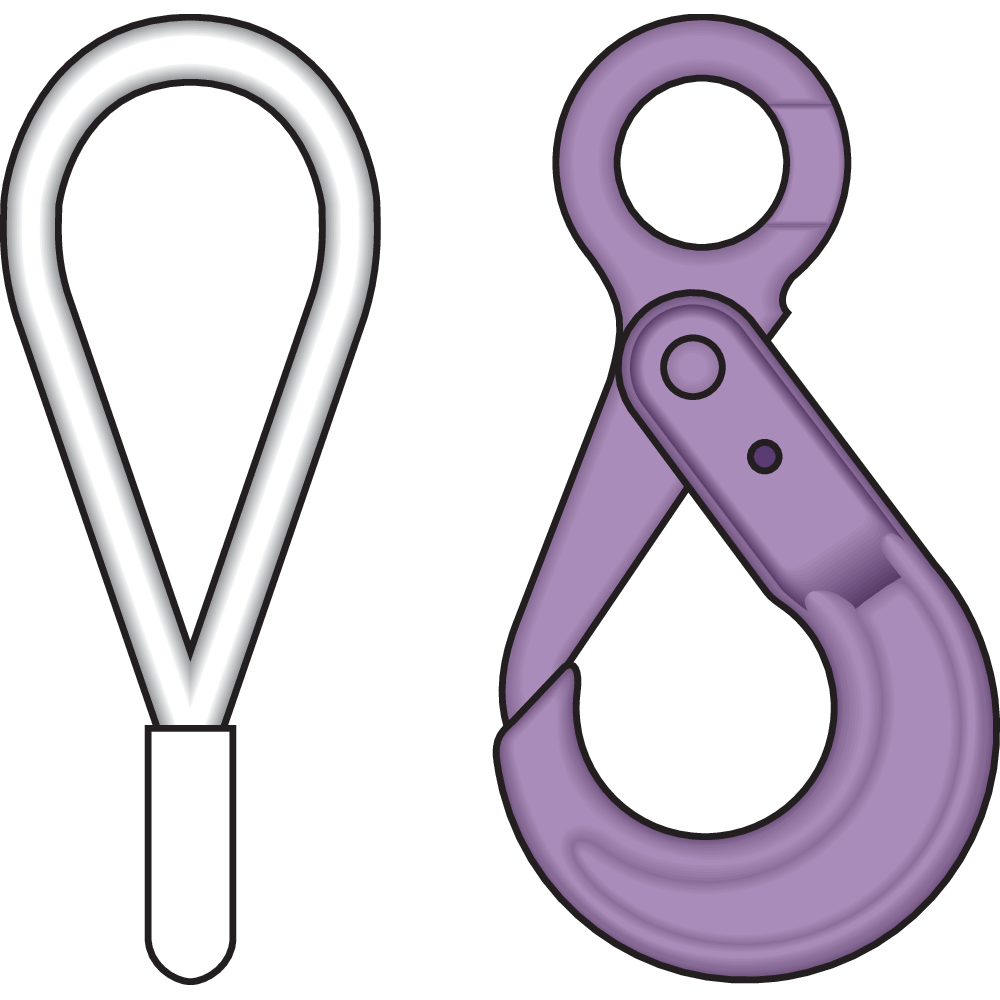

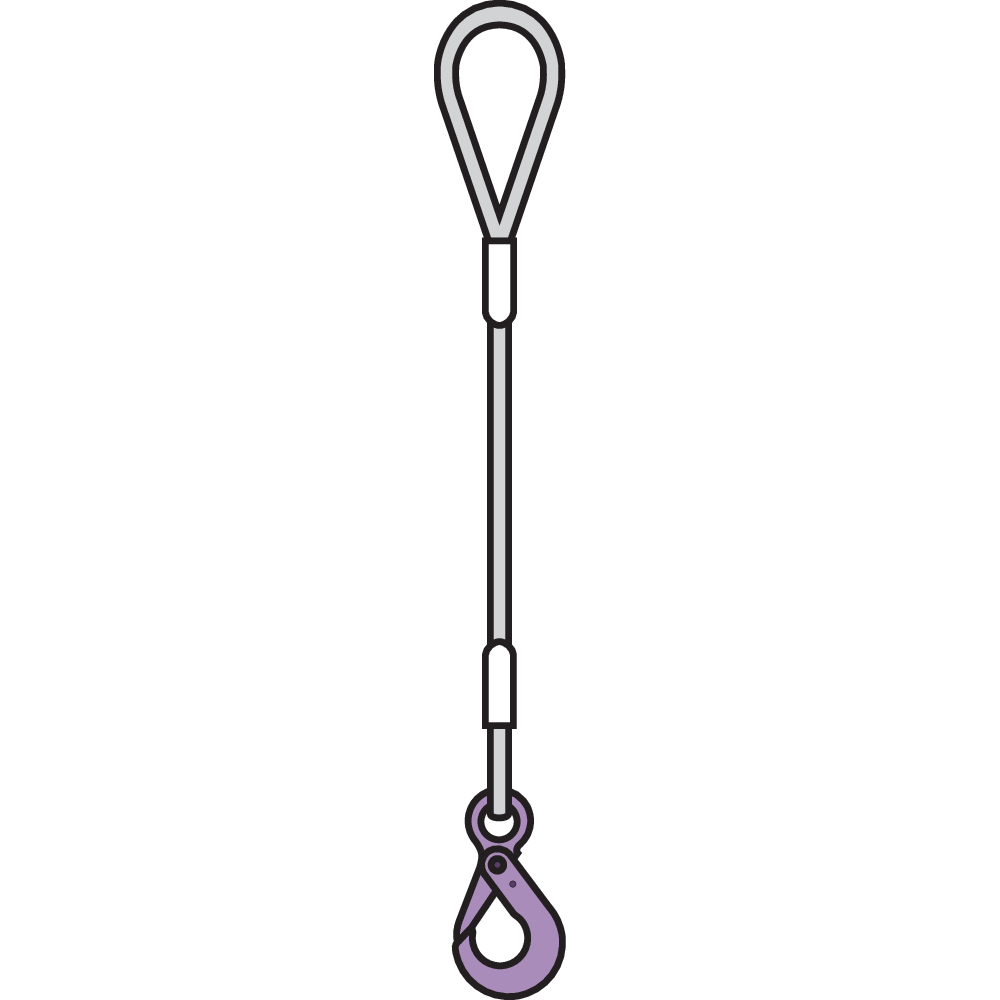

Design: Soft eye in one end and self-locking safety hook in other end, mechanical aluminium spliced.
Load table at Technical Data -> Show table
Please specify the needed (working) length and eye length with your request.
Other rope construction and/or end-terminations such as master links, shackles, hooks, etc.. possible on request. In that case, please check our website for more standard wire rope slings. You can also contact us to discuss the possible options or specify it with your request.
Stållinestroppar 6X36 IWRC 1960N/mm2
enligt EN 13414-1
Säkerhetsfaktor 4:1 |
⌀ | Enkel | 2-partig & U-form i vinkel* | 3−4-partig* | Ändlös | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Rakt | Snarat | U-form | 0°−45° | 45°−60° | 0°−45° | 45°−60° | Rakt | Snarat | U-form | ||
mm | Max last (WLL) i ton | ||||||||||
3 | 0,11 | 0,09 | 0,22 | 1,15 | 1,11 | 0,23 | 0,16 | 0,22 | 0,17 | 0,44 | |
4 | 0,19 | 0,15 | 0,38 | 0,27 | 0,19 | 0,40 | 0,29 | 0,38 | 0,30 | 0,76 | |
5 | 0,30 | 0,24 | 0,60 | 0,42 | 0,30 | 0,63 | 0,45 | 0,60 | 0,48 | 1,20 | |
6 | 0,43 | 0,34 | 0,86 | 0,60 | 0,43 | 0,90 | 0,65 | 0,86 | 0,69 | 1,72 | |
7 | 0,60 | 0,50 | 1,20 | 0,80 | 0,60 | 1,26 | 0,90 | 1,20 | 0,96 | 2,40 | |
8 | 0,80 | 0,65 | 1,60 | 1,15 | 0,80 | 1,70 | 1,20 | 1,60 | 1,30 | 3,20 | |
9 | 1,05 | 0,80 | 2,10 | 1,45 | 1,05 | 2,20 | 1,80 | 2,10 | 1,70 | 4,20 | |
10 | 1,30 | 1,00 | 2,60 | 1,80 | 1,30 | 2,70 | 1,90 | 2,60 | 2,00 | 5,20 | |
11 | 1,50 | 1,20 | 3,00 | 2,20 | 1,50 | 3,30 | 2,30 | 3,00 | 2,50 | 6,00 | |
12 | 1,80 | 1,40 | 3,60 | 2,60 | 1,80 | 3,90 | 2,80 | 3,60 | 3,00 | 7,20 | |
13 | 2,20 | 1,80 | 4,40 | 3,00 | 2,20 | 4,50 | 3,20 | 4,40 | 3,50 | 8,80 | |
14 | 2,50 | 2,00 | 5,00 | 3,50 | 2,50 | 5,30 | 3,80 | 5,00 | 4,00 | 10,00 | |
16 | 3,30 | 2,60 | 6,60 | 4,60 | 3,30 | 6,90 | 4,90 | 6,60 | 5,20 | 13,20 | |
18 | 4,10 | 3,30 | 8,20 | 5,80 | 4,10 | 8,70 | 6,20 | 8,20 | 6,60 | 16,40 | |
20 | 5,10 | 4,10 | 10,20 | 7,20 | 5,10 | 10,70 | 7,70 | 10,20 | 8,20 | 20,40 | |
22 | 6,20 | 5,00 | 12,40 | 8,70 | 6,20 | 13,00 | 9,30 | 12,40 | 10,00 | 24,80 | |
24 | 7,40 | 5,90 | 14,80 | 10,30 | 7,40 | 15,50 | 11,10 | 14,80 | 11,80 | 29,60 | |
26 | 8,70 | 7,00 | 17,40 | 12,10 | 8,70 | 18,20 | 13,00 | 17,40 | 13,80 | 34,80 | |
28 | 10,00 | 8,00 | 20,00 | 14,00 | 10,00 | 21,00 | 15,00 | 20,00 | 16,00 | 40,00 | |
32 | 13,00 | 10,40 | 26,00 | 18,40 | 13,00 | 27,50 | 19,70 | 26,00 | 21,00 | 52,00 | |
36 | 16,60 | 13,30 | 33,00 | 23,00 | 16,60 | 35,00 | 25,00 | 33,00 | 26,50 | 66,00 | |
40 | 20,50 | 16,40 | 41,00 | 29,00 | 20,50 | 43,00 | 31,00 | 41,00 | 33,00 | 82,00 | |
44 | 25,00 | 20,00 | 50,00 | 35,00 | 25,00 | 52,00 | 37,00 | 50,00 | 40,00 | 100,00 | |
48 | 29,50 | 23,60 | 59,00 | 41,00 | 29,50 | 62,00 | 44,00 | 59,00 | 47,00 | 118,00 | |
52 | 35,00 | 28,00 | 70,00 | 48,00 | 35,00 | 73,00 | 52,00 | 70,00 | 55,00 | 140,00 | |
Faktor (KL) | 1 | 0,8 | 2 | 1,4 | 1 | 2,1 | 1,5 | 2 | 1,6 | 4 | |
* När flerpartiga redskap används i snarat lyft - reducera värdet med 20%. |
