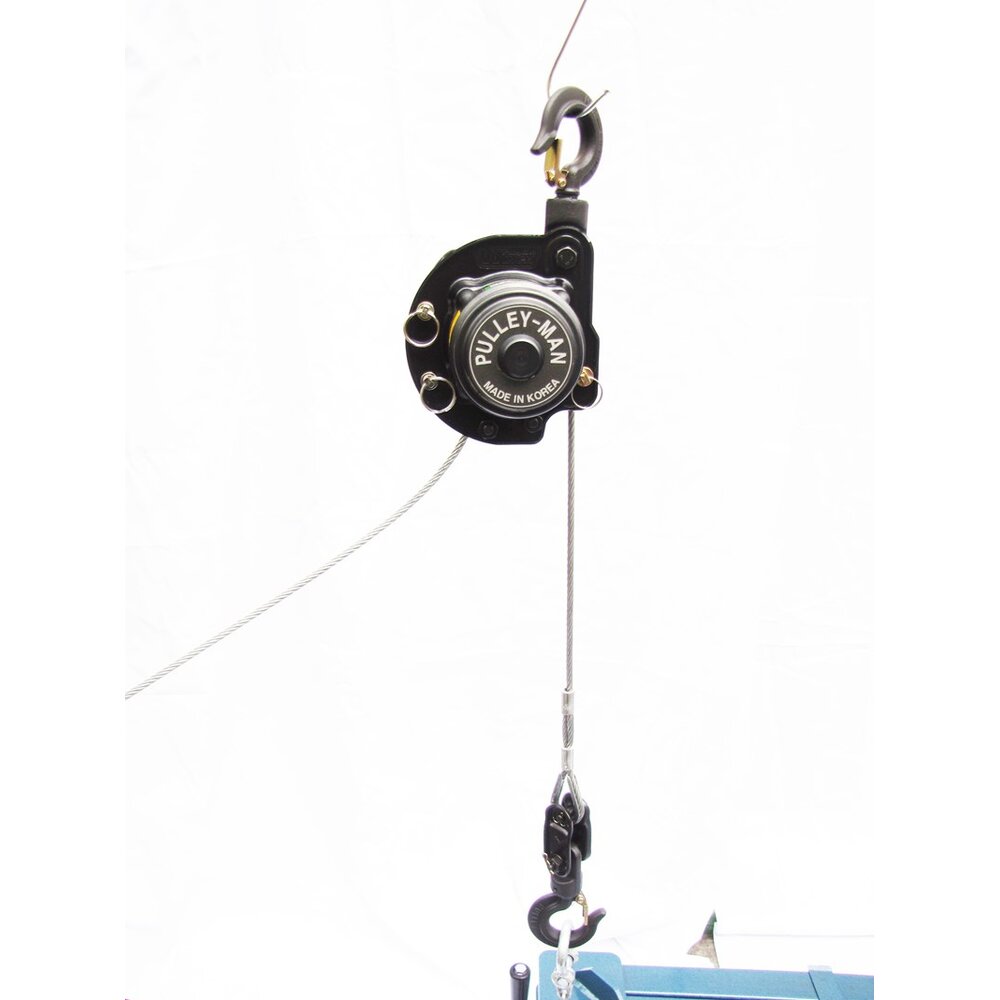

Lifting or hauling winch. Capacity: 300 kg single line or 600 kg double line. Easy installation and dismantling, compact and light weight at 3.5kg. 12 m supplied working length - this can be increase considerably.
Powered by reverable hand drill or screwdriver. Horizontal/Vertical/Slant working conditions by fixed mainbody or fixed wire hook method. Trouble-free automatic holding - brake function (patented gear-reducer). Can do many jobs in any 360 rotating direction. Supplied with 12 m of galvanized steel rope 4.76 mm, 7x19+WSC. Self-locking gear. Other lengths also available, ask more about our sales.

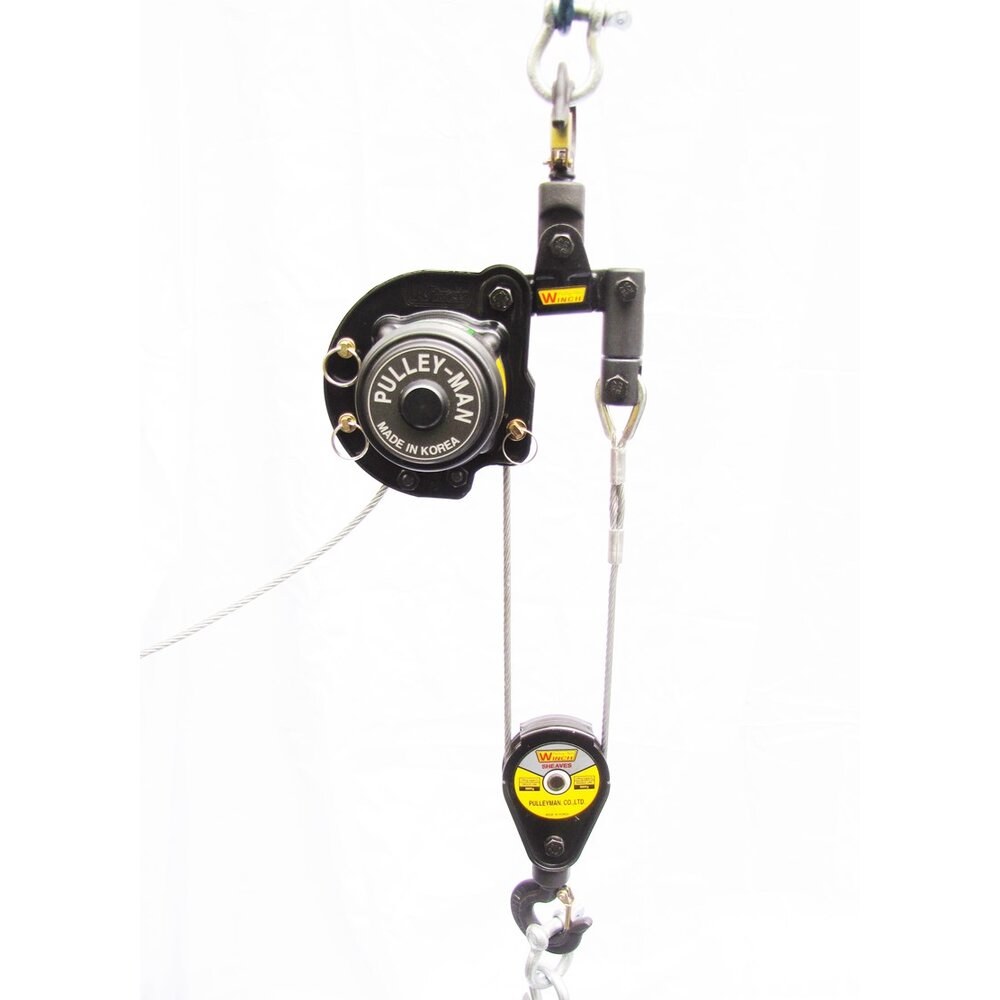

In the 600 kg model, a winch will be equipped with extra pulley wheel. If you want 600 kg model please select PM300 + PM600 (extra pulley).
Product code explanations:
PM300: Entire winch 300 kg
PM600: Just a pulley that gives the winch a load of WLL 600 kg
TEK47515K: Spare part steel wire 15 m, loop at one end (no hook)
TEK47520K: Spare part steel wire 20 m, loop at one end (no hook)
PM300KOUKKU: Spare part hook, fits the wire and top of the winch
- Note: See the pulling capacities in the technical data tab
Pulling capacities for wheeled loads
|
Gradient
|
PM300 kg |
PM600 kg |
| 6° | 1500 | 3000 |
| 12° | 975 | 1950 |
| 16° | 825 | 1650 |
| 27° | 585 | 1170 |
| 35° | 450 | 900 |
