Aluminium mini lever hoists

Quality and extra small lever hoist for professional use with a standard lifting height of 3 meters. Hooks are equipped with swivels. Other lifting heights are available with short lead times from the stock upon request. The hoist can also be used as a puller.



Show more

Product number:

Quality and extra small lever hoist for professional use with a standard lifting height of 3 meters. Hooks are equipped with swivels. Other lifting heights are available with short lead times from the stock upon request. The hoist can also be used as a puller.



  • Material: Aluminium
  • Marking: According to standard, CE-marked
  • Finish: Painted, white / orange
  • Standard: EN 13157
  • Note: 250, 500 and 750 hoist with carry-on bags

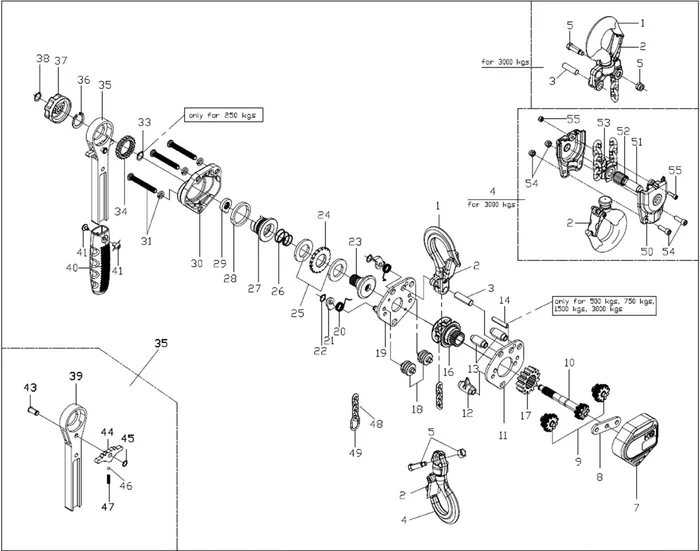

SPARE PARTS



Spare part (product code) Description Suitable for hoist (product code)
VTS250AKO Bottom hook VTS250
VTS250YKO Top hook VTS250
VTS250JAR Brake disc (1 pc) VTS250
VTS250SAL Hook latch kit (1 pc) VTS250
VTS250KP Hand wheel | Part no. 37 VTS250
VTSKPSOKKA Hand wheel snap ring | Part no. 38 VTS250

VTS500AKO Bottom hook VTS500
VTS500YKO Top hook VTS500
VTS500JAR Brake disc (1 pc) VTS500
VTS500SAL Hook latch kit (1 pc) VTS500
VTS500KP Hand wheel | Part no. 37 VTS500
VTSKPSOKKA Hand wheel snap ring | Part no. 38 VTS500

VTS750AKO Bottom hook VTS750
VTS750YKO Top hook VTS750
VTS750JAR Brake disc (1 pc) VTS750
VTS750SAL Hook latch kit (1 pc) VTS750
VTS750KP Hand wheel | Part no. 37 VTS750
VTSKPSOKKA Hand wheel snap ring | Part no. 38 VTS750

VTS1500AKO Bottom hook VTS1500
VTS1500YKO Top hook VTS1500
VTS1500JAR Brake disc (1 pc) VTS1500
VTS1500SAL Hook latch kit (1 pc) VTS1500
VTS1500KP Hand wheel | Part no. 37 VTS1500
VTSKPSOKKA Hand wheel snap ring | Part no. 38 VTS1500

VTS3000AKO Bottom hook VTS3000
VTS3000YKO Top hook VTS3000
VTS3000JAR Brake disc (1 pc) VTS3000
VTS3000SAL Hook latch kit (1 pc) VTS3000
VTS3000KP Hand wheel | Part no. 37 VTS3000
VTSKPSOKKA Hand wheel snap ring | Part no. 38 VTS3000

TALKE3193 Hoist chain | 3,1 x 9,3 mm VTS250
TALKE4312 Hoist chain | 4,3 x 12 mm  VTS500
TALKE515 Hoist chain | 5 x 15 mm VTS750
TALKE7120 Hoist chain | 7,1 x 19,9 mm VTS1500, VTS3000

Also other spare parts available with a delivery time, ask our sales for more information
