Eye self-locking hook with swivel, grade 80

Due to the swivel the hook is easy to align into the wanted direction. The hook locks automatically when lifting starts.



Show more

Product number:

Due to the swivel the hook is easy to align into the wanted direction. The hook locks automatically when lifting starts.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-3
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8

SPARE PARTS

Spare part (product code) Description Suitable for ABT hook (product code/-s) Note
VAKVO6S Spare part set 6 mm | Incl. trigger, spring, pin VAK6, VAKH6, VAKL6, VAKA106, VAKAH106, VAKAL106, VAKAL1006KL moribund model*
VAKVO78S Spare part set 7/8 mm | Incl. trigger, spring, pin VAK78, VAKH78, VAKL78, VAKA1078, VAKAH1078, VAKAL1078, VAKAL1078KL moribund model*
VAKVO10S Spare part set 10 mm | Incl. trigger, spring, pin VAK10, VAKH10, VAKL10, VAKA1010, VAKAH1010, VAKAL1010, VAKAL1010KL moribund model*
VAKVO13S Spare part set 13 mm | Incl. trigger, spring, pin VAK13, VAKH13, VAKL13, VAKA1013, VAKAH1013, VAKAL1013, VAKAL1013KL moribund model*
VAKVO16S Spare part set 16 mm | Incl. trigger, spring, pin VAK16, VAKH16, VAKL16, VAKA1016, VAKAH1016, VAKAL1016, VAKAL1016KL
VAKVO20S Spare part set 20 mm | Incl. trigger, spring, pin VAK20, VAKH20, VAKL20, VAKA1020, VAKAH1020, VAKAL1020, VAKAL1020KL
VAKVO22S Spare part set 22 mm | Incl. trigger, spring, pin VAK22, VAKH22, VAKA1022, VAKAL1022KL
VAKVO26S Spare part set 26 mm | Incl. trigger, spring, pin VAK26, VAKAL1026KL
VAKVO32S Spare part set 32 mm | Incl. trigger, spring, pin VAK32

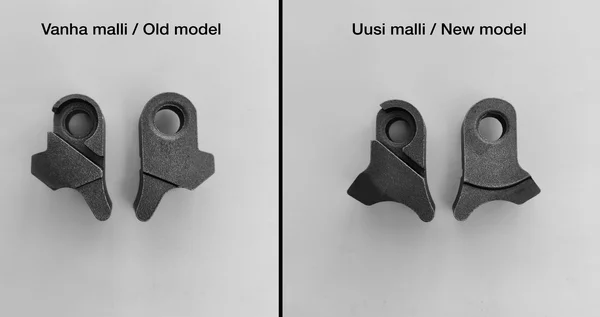

VAKVO6S2 Spare part set 6 mm | Incl. triggers (new and old model), spring, pin VAK6, VAKH6, VAKL6, VAKA106, VAKAH106, VAKAL106, VAKAL1006KL *substitutive model
VAKVO78S2 Spare part set 7/8 mm | Incl. triggers (new and old model), spring, pin VAK78, VAKH78, VAKL78, VAKA1078, VAKAH1078, VAKAL1078, VAKAL1078KL *substitutive model
VAKVO10S2 Spare part set 10 mm | Incl. triggers (new and old model), spring, pin VAK10, VAKH10, VAKL10, VAKA1010, VAKAH1010, VAKAL1010, VAKAL1010KL *substitutive model
VAKVO13S2 Spare part set 13 mm | Incl. triggers (new and old model), spring, pin VAK13, VAKH13, VAKL13, VAKA1013, VAKAH1013, VAKAL1013, VAKAL1013KL *substitutive model
